What Do You Call An Observation Elevator?
-
An observation elevator is a unique transparent elevator that provides passengers not only with vertical transportation but also with a pleasant visual experience.
-
-
What Types Of Observation Elevators Are There?
-
Common types of observation elevators include single-direction observation elevators (featuring a glass design with a single directional view), panoramic observation elevators, and semi-panoramic observation elevators.
-
-
What Are The Components Of The Elevator System?
-
Generally, the elevator system consists of an elevator machine room, elevator shaft, elevator car, elevator guide rails, elevator door system, elevator control system, safety system, and other components.
-
FUJI Observation Elevator
FUJI observation elevators feature a transparent car design that provides breathtaking views. They use high-security laminated glass, and the interlayer in the laminated glass has radiation protection function, which buffers sound waves and achieves soundproofing effects. With superior performance, these elevators provide perfect transportation for sightseeing.
Load capacity |
450kg, 630kg, 800kg, 1000kg, 1250kg, 1350kg, 1600kg, 1800kg, 2000kg |
Speed |
1.0m/s, 1.5m/s, 1.75m/s, 2.0m/s, 2.5m/s, 3.0m/s, 4.0m/s, 6.0m/s |
Stops |
2 to 106 |
Persons |
1 to 26 |
Machine room |
small machine room or machine room-less |
Our team consists of highly motivated and skilled specialists who know how to deal with any issue that you may come across. This creates a basis for lasting relationships with our clients built on trust and mutual understanding.
We are devoted to creating unique and innovative solutions along with the high-quality supporting services. Our team consists of highly motivated and skilled specialists who know how to deal with any issue that you may come across. This creates a basis for lasting relationships with our clients built on trust and mutual understanding.
Features
Intelligent Control System
When the elevator accelerates, decelerates, and brakes, it operates more stably, providing outstanding ride comfort.
FUJI digital variable frequency technology: smooth start, fast and quiet movement
FUJI VVVF drive ensures smoother operation. Good noise control provides passengers with a peaceful riding experience.
High-precision positioning control system
FUJI elevator system's car displacement tracking technology ensures high-precision, safe and perfect leveling between the car and the landing level.
General Specifications of Our Elevator Cabins

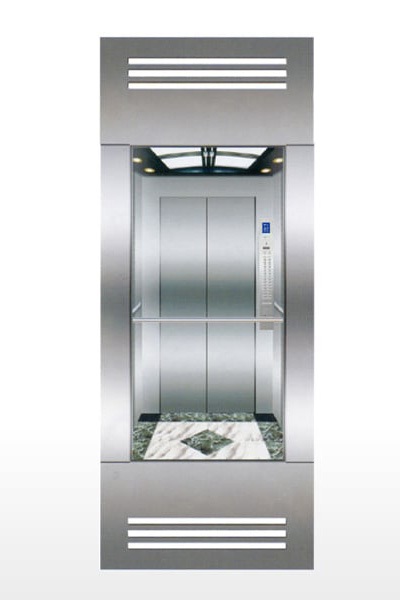

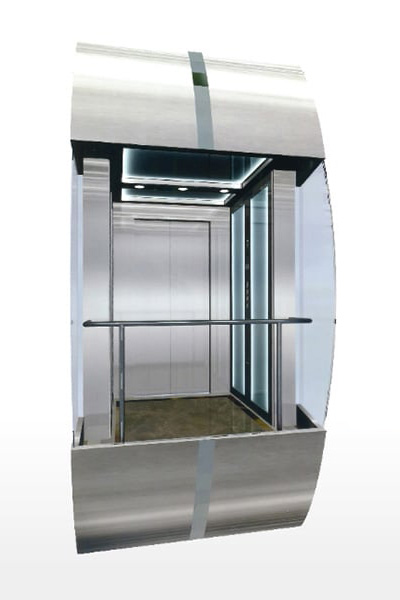

FJ-GA01 Observation Elevator
Upper and bottom shell: Mirror stainless steel
Windows: Safety laminated glass, mirror stainless steel
Ceiling: Mirror stainless steel, acrylic top panel
Car door: Framed glass door
Handrail: Stainless steel pipe handrail
Flooring: Standard PVC (optional marble)
Request a Quote
HD-GA01 Observation Elevator
Upper and bottom shell: Silver painted steel plate
Windows: Curved laminated safety glass
Ceiling: Steel plate painted frame, acrylic diffuser
Car wall/car door: Hairline stainless steel
Handrail: Stainless steel floor-mounted handrail
Flooring: Standard PVC (optional marble)
Request a Quote

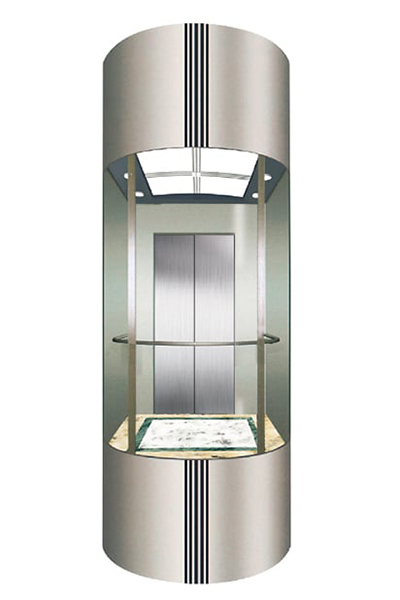

HD-GA02 Observation Elevator
Upper and bottom shell: Painted steel plate
Windows: Curved laminated safety glass
Ceiling: Hairline stainless steel, acrylic diffuser
Car wall/car door: Hairline stainless steel
Handrail: Double stainless steel tube handrail
Flooring: Standard PVC (optional marble)
Request a Quote

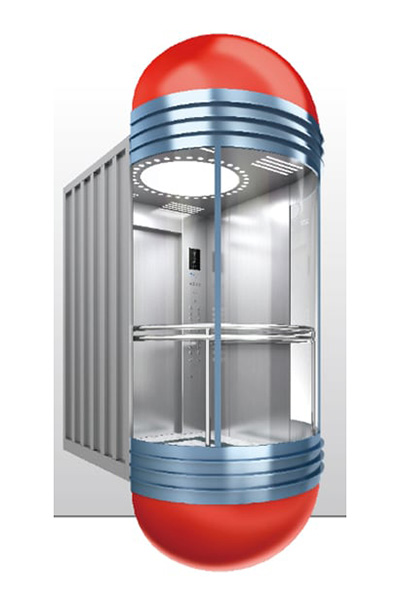

HD-GA03 Observation Elevator
Upper and bottom shell: Mirror stainless steel embossed trim surround, red acrylic decorative cover
Windows: Curved laminated safety glass
Ceiling: Hairline stainless steel, with lighting through circular, milky white acrylic plate
Car wall/car door: Hairline stainless steel
Handrail: Double stainless steel tube handrail
Flooring: Standard PVC (optional marble)
Request a Quote
FJ-GA10 Observation Elevator
Upper and bottom shell: Milky white acrylic
Windows: Curved laminated safety glass
Ceiling: Hairline stainless steel, mirror stainless steel, central lighting fixture
Car wall: Hairline stainless steel
Car door: Framed glass door
Handrail: Stainless steel tube handrail
Flooring: Standard PVC (optional marble)
Request a Quote

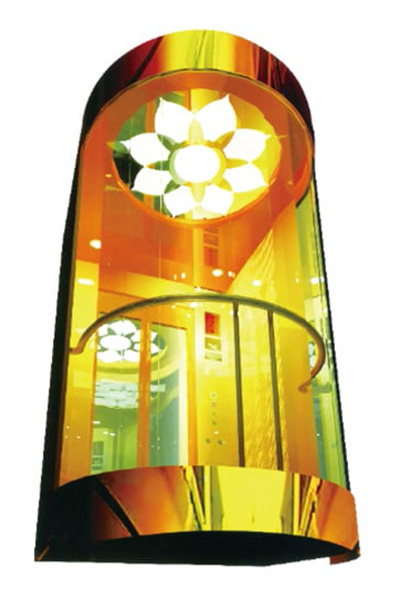

FJ-GA02 Observation Elevator
Upper and bottom shell: Titanium gold mirror stainless steel
Windows: Curved laminated safety glass
Ceiling: Titanium gold mirror stainless steel, central lighting fixture
Car wall/car door: Titanium gold mirror stainless steel
Handrail: Titanium gold stainless steel
Flooring: Standard PVC (optional marble)
Request a Quote
FJ-GA04 Observation Elevator
Upper and bottom shell: Hairline stainless steel, mirror stainless steel
Windows: Laminated safety glass
Ceiling: Stainless steel frame, central lighting fixture
Car wall: Mirror stainless steel frame, frosted glass
Car door: Hairline stainless steel
Handrail: Stainless steel round tube handrail
Flooring: Standard PVC (optional marble)
Request a Quote
FJ-GA06 Observation Elevator
Upper and bottom shell: Painted steel plate
Windows: Laminated safety glass
Ceiling: Mirror stainless steel frame, acrylic diffuser, downlights
Car wall/car door: Hairline stainless steel
Handrail: Stainless steel round tube handrail
Flooring: Standard PVC (optional marble)

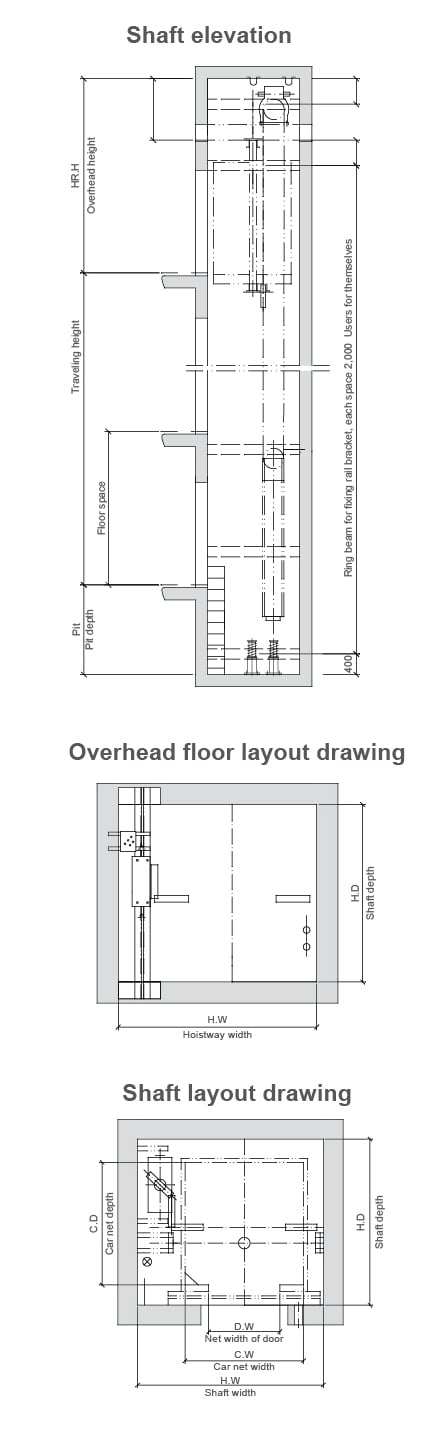

Request a QuoteDimensions
| Persons | Rated capacity (kg) | Rated speed (m/s) | Car size (mm) | Door size (mm) 2P Central opening | Shaft size (mm) | ||
| C.W×C.D× D.H | D.W×D.H | H.W× H.D | HR.H | Pit | |||
| 6 | 450 | 1.0 | 1100×1100×2300 | 800×2100 | 2050×1850 | 4200 | 1500 |
| 8 | 630 | 1.0 | 1400×1100×2300 | 800×2100 | 2250×1900 | 4200 | 1500 |
| 1.5/1.75 | 4400 | 1600 | |||||
| 10 | 800 | 1.0 | 1400×1350×2300 | 800×2100 | 2250×1950 | 4200 | 1500 |
| 1.5/1.75 | 4400 | 1600 | |||||
| 2.0 | 4800 | 1800 | |||||
| 2.5 | 2000 | ||||||
| 13 | 1000 | 1.0 | 1500×1550×2300 | 900×2100 | 2350×2150 | 4200 | 1500 |
| 1.5/1.75 | 4400 | 1600 | |||||
| 2.0 | 4800 | 1800 | |||||
| 2.5 | 4800 | 2000 | |||||
| 21 | 1600 | 1.0 | 1900×1800×2300 | 1100×2100 | 2850×2400 | 4500 | 1500 |
| 1.5/1.75 | 4700 | 1600 | |||||
| 2.0 | 4900 | 1800 | |||||
| 2.5 | 5100 | 2000 | |||||
| 3.0 | 1900×1800×2800 | 3150×2400 | 5200 | 2600 | |||
| 4.0 | 6000 | 4900 | |||||
| 26 | 2000 | 1.0 | 1900×2200×2300 | 1100×2100 | 2900×2600 | 4500 | 1500 |
| 1.5/1.75 | 4700 | 1600 | |||||
| 2.0 | 4900 | 1800 | |||||
| 3.0 | 1900×2200×2800 | 3150×2700 | 5200 | 2600 | |||
| 4.0 | 6000 | 4900 | |||||
You can also match the Passenger elevator
interior to your liking
Signal system, Ceiling series, Landing door series, We have different styles for you to choose
-

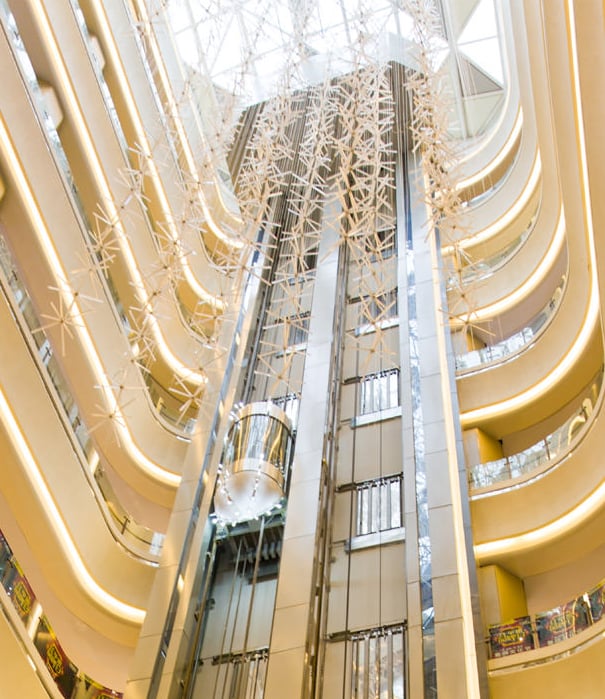

Which Buildings Should Observation Elevator Apply To?
-
Observation elevators are typically installed in high-rise buildings such as shopping malls, hotels, and office buildings, allowing passengers to enjoy the indoor scenery during the ascent or descent.
-
-
What Is The Difference Between An Escalator And An Elevator?
-
Elevators, or lifts, transport passengers and goods vertically.
Escalators are moving staircases that transport people from one level of a building to another, either going up or down.
Moving sidewalks are long-distance conveyors that can be horizontal or slightly inclined, primarily used in airports and large train stations.
-
-
How Reliable Is FUJl Elevator System?
-
FUJI has over thirty years of experience in the elevator industry and is one of the pioneer elevator manufacturers in China. Our elevators are equipped with intelligent control systems, digital frequency conversion technology, permanent magnet synchronous motor technology, high-precision positioning control systems, and more, ensuring the safety of the elevator system.
-
Why Choose FUJI Elevator
We have a team of passionate engineers who will collaborate with each customer to find solutions, and build custom elevators, escalators or moving walks by continually pushing the boundaries of innovation. Their expertise and experience have been verified in numerous different projects during nearly 40 years of activity. This means we know the elevator industry and we currently cover a wide range of market sectors with our in-depth knowledge.
