What are the components of the elevator system?
-
Generally, the elevator system includes the elevator machine room, elevator shaft, elevator car, elevator guide rails, elevator door system, elevator control system, safety systems, and other components.
-
-
How much weight can a passenger elevator hold?
-
Passenger elevators manufactured by ordinary elevator companies generally have a load capacity ranging from 260KG to 1600KG. With over thirty years of experience in the elevator industry, our bespoke passenger lifts can support a load capacity of up to 3000KG.
-
-
What is the difference between a freight elevator and a
passenger elevator?-
Freight elevators are designed for transporting goods and materials within buildings, and compared to passenger elevators, they operate at slower speeds. Passenger elevators offer faster speeds and greater comfort.
-
FUJI Passenger Elevator
FUJI passenger elevators are equipped with specialized frequency converters that are based on advanced control theory and designed with ergonomic principles. The startup, acceleration, and braking curves are optimized to provide better comfort, making it a true current vector control variable frequency drive system.
FUJI elevators feature an energy-saving permanent magnet synchronous drive system that reduces energy consumption by over 48%. The professional intelligent group control system can simultaneously manage up to 8 elevators. The advanced artificial intelligence and operation database greatly improve operational efficiency, minimizing passenger waiting time to the maximum extent possible.
Our team consists of highly motivated and skilled specialists who know how to deal with any issue that you may come across. This creates a basis for lasting relationships with our clients built on trust and mutual understanding.
We are devoted to creating unique and innovative solutions along with the high-quality supporting services. Our team consists of highly motivated and skilled specialists who know how to deal with any issue that you may come across. This creates a basis for lasting relationships with our clients built on trust and mutual understanding.
FUJI passenger elevators offer a diverse range of design options, ideal for hotels, restaurants, office buildings, commercial complexes, entertainment centers, shopping malls, schools, and municipal facilities.
Load capacity |
450kg, 630kg, 800kg, 1000kg, 1250kg, 1350kg, 1600kg, 1800kg, 2000kg, 2500kg, 3000kg |
Speed |
1.0m/s, 1.5m/s, 1.75m/s, 2.0m/s, 2.5m/s, 3.0m/s, 4.0m/s, 6.0m/s |
Stops |
2 to 101 |
Persons |
1 to 40 (up to 3000kg) |
Machine room |
small machine room or machine room-less |
Features
FUJI High-Precision Positioning Control System
FUJI passenger elevator system's car displacement tracking technology ensures high-precision and safe leveling between the car and the landing level.
Panasonic Advanced Door Control System
FUJI passenger elevators employ advanced Panasonic variable frequency and voltage control technology, automatically adjusting the most suitable door opening and closing speeds on each floor to ensure a safe and reliable riding experience for passengers.
Energy-Saving Technology
FUJI passenger elevators utilize the most advanced control and drive technologies in elevators, minimizing elevator energy consumption to the maximum extent and further reducing elevator maintenance costs, achieving over 30% higher efficiency compared to traditional elevator drive systems.
Green and Environmentally Friendly Traction System
Our production department will first prepare materials for production. After the raw materials are discharged from the warehouse, they will undergo quality inspection. If the quality inspection is passed, the UAV assembly will be started.
Compact Control Cabinet
Our production department will first prepare materials for production. After the raw materials are discharged from the warehouse, they will undergo quality inspection. If the quality inspection is passed, the UAV assembly will be started.
Efficient and Energy-Saving Car Lighting
Our production department will first prepare materials for production. After the raw materials are discharged from the warehouse, they will undergo quality inspection. If the quality inspection is passed, the UAV assembly will be started.
Digital Intelligent Management
Our production department will first prepare materials for production. After the raw materials are discharged from the warehouse, they will undergo quality inspection. If the quality inspection is passed, the UAV assembly will be started.
General Specifications of Our Elevator Cabins

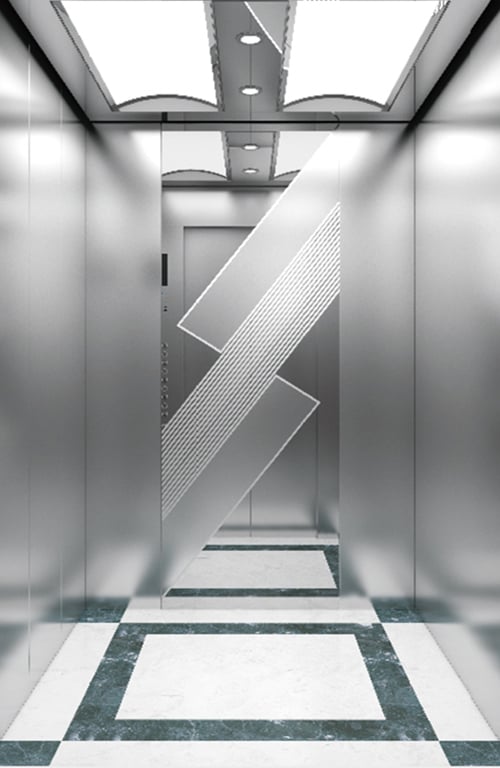

HD-JX12-1A Passenger Elevator
Ceiling: Hairline stainless steel frame, light strip, LED lighting (HD-DTA14A)
Rear wall:
Center panel: mirror stainless steel, auxiliary panel: hairline stainless steel
Side wall/Front wall/Car door: Hairline stainless steel
Flooring: Standard PVC (optional marble)
Request a Quote

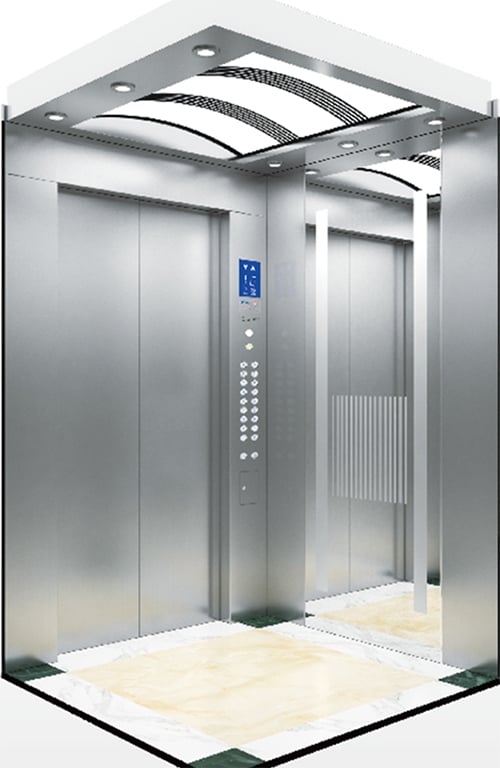

HD-JX12-3 Passenger Elevator
Ceiling: Mirror stainless steel frame, acrylic arched top panel, downlight
Rear wall:
Center panel: mirror stainless steel,
auxiliary panel: hairline stainless steel
Side wall/Front wall/Car door: Hairline stainless steel
Flooring: Standard PVC (optional marble)
Request a Quote
HD-JX12-4 Passenger Elevator
Ceiling: Mirror stainless steel frame, acrylic arched top panel, downlight (HD-DTA03)
Rear wall:
Center panel: mirror stainless steel,
auxiliary panel: hairline stainless steel
Side wall/Front wall/Car door: Hairline stainless steel
Flooring: Standard PVC (optional marble)
Request a Quote
HD-JX05 Passenger Elevator
Ceiling: Mirror stainless steel frame, acrylic arched top panel, downlight
Rear wall:
Center panel: mirror stainless steel,
auxiliary panel: hairline stainless steel
Side wall/Front wall/Car door: Hairline stainless steel
Flooring: Standard PVC (optional marble)
Request a Quote
HD-JX61 Passenger Elevator
Ceiling: Mirror stainless steel frame, acrylic arched top panel, downlight
Rear wall:
Center panel: mirror stainless steel,
auxiliary panel: hairline stainless steel
Front wall/Car door: Hairline stainless steel
Flooring: Standard PVC (optional marble)
Request a Quote
HD-JX67 Passenger Elevator
Ceiling: Mirror stainless steel frame, acrylic arched top panel, downlight
Rear wall:
Center panel: mirror stainless steel,
auxiliary panel: hairline stainless steel
Front wall/Car door: Hairline stainless steel
Flooring: Standard PVC (optional marble)
Request a Quote

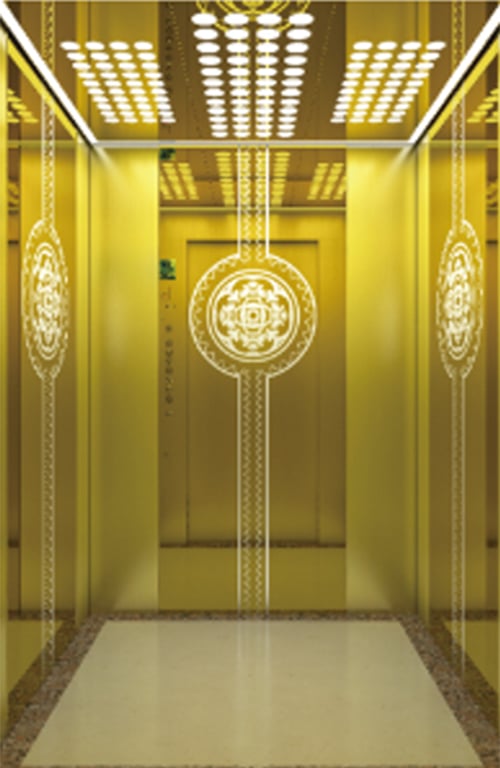

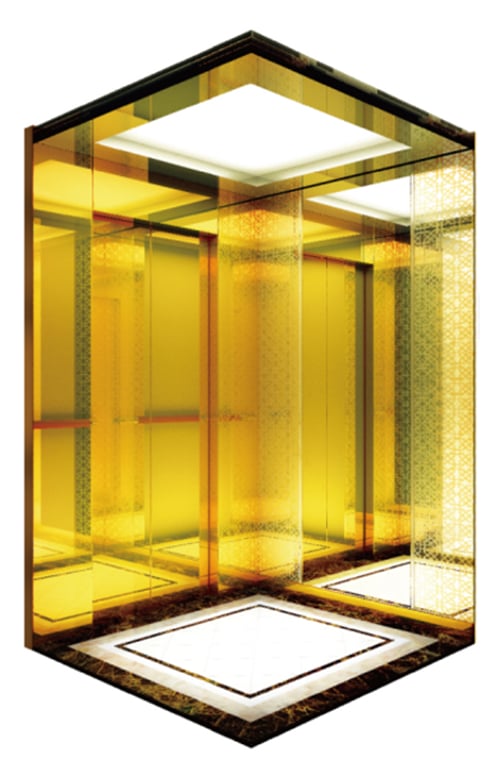

FJ-JXA01 Passenger Elevator
Ceiling: Titanium gold mirror frame, LED, Titanium gold mirror etched stainless steel
Rear wall/Side wall:
Center panel: titanium gold mirror etched stainless steel,
side wall auxiliary panel: marble
Front wall/Car door: Titanium gold mirror stainless steel
Flooring: Standard PVC (optional marble)
Request a Quote
FJ-JXA02 Passenger Elevator
Ceiling: Titanium gold stainless steel, acrylic top panel
Rear wall/Side wall:
Center panel: glass mirror,
rear wall auxiliary panel: Etched stainless steel mirror plated with antique bronze color
Front wall/Car door: Antique bronze mirror stainless steel
Flooring: Standard PVC (optional marble)
Request a Quote

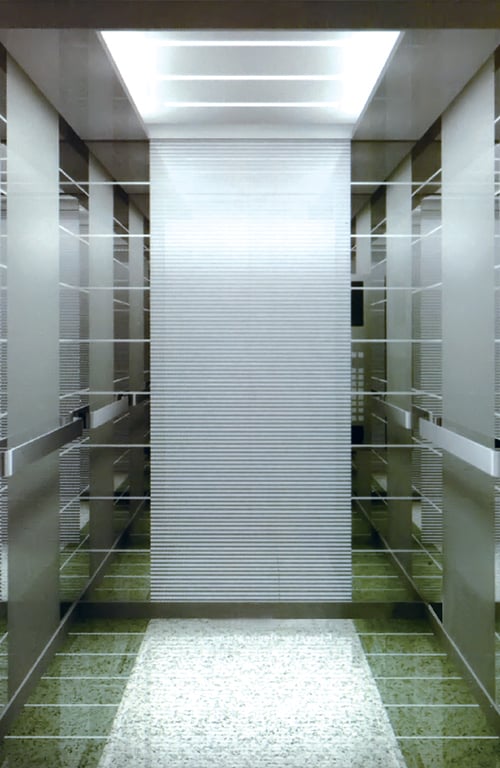

FJ-JXA07 Passenger Elevator
Ceiling: Stainless steel mirror frame, acrylic top panel
Rear wall/Side wall: Center panel: 304 hairline stainless steel, auxiliary panel: etched 304 stainless steel mirror
Front wall/Car door header: 304 mirror stainless steel
Handrail: Stainless steel flat handrail
Flooring: Standard PVC (optional marble)
FJ-JXA18 Passenger Elevator
Ceiling: White acrylic, stainless steel metal wire frame
Rear wall: Center panel: art glass, acrylic molding lights on both sides
Side wall: Paint-free panel, hidden light strip
Flooring: Standard PVC (optional marble)
Request a Quote

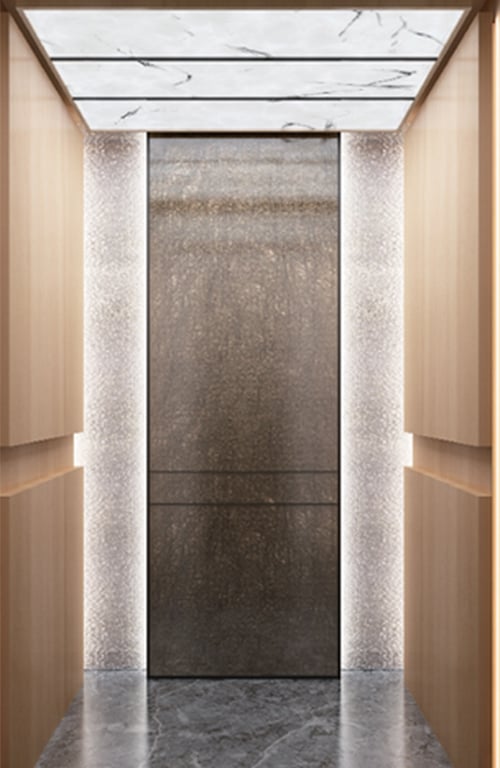

FJ-JXA19 Passenger Elevator
Ceiling: Four-sided LED, antique bronze hairline stainless steel, downlights
Car side walls: Antique bronze hairline stainless steel
Car rear wall: Decorative picture frame, concealed LED light strip
Flooring: Standard PVC (optional marble)
Request a Quote

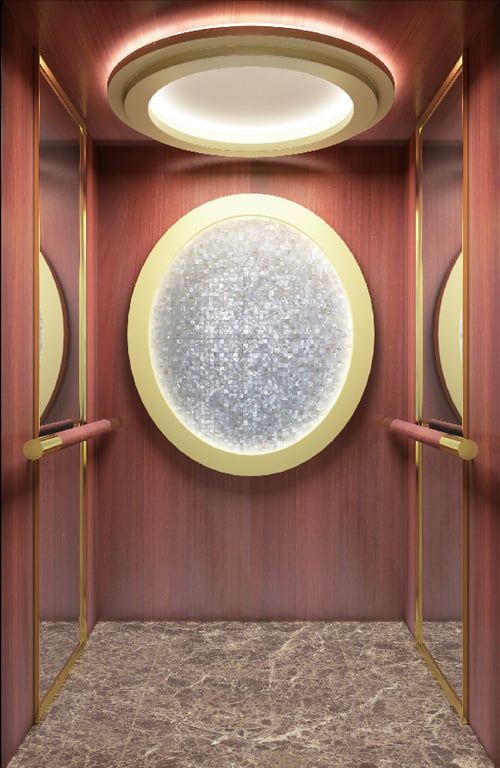

FJ-JXA20 Passenger Elevator
Ceiling: White decorative lights
Car real wall: white mother-of-pearl decorative lights on the center
Car side walls: paint-free side panel + mirror
Handrail: Wood/ titanium gold stainless steel
Flooring: Standard PVC (optional marble)
Request a Quote

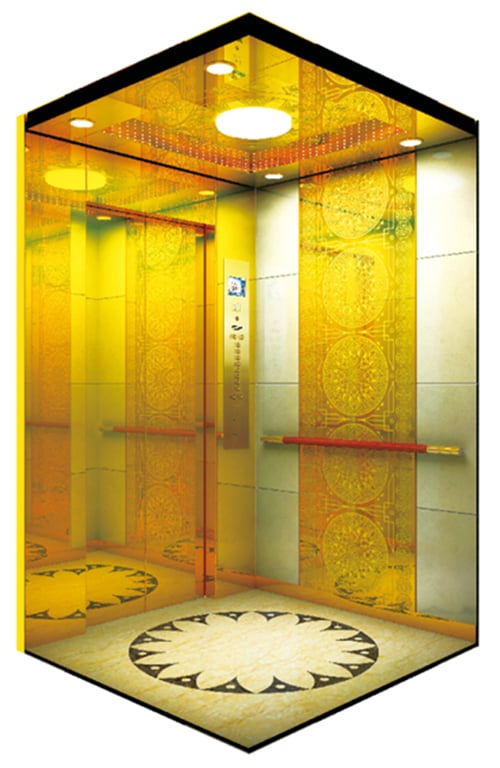

FJ-JXA85 Passenger Elevator
Ceiling: Titanium gold mirror stainless steel, acrylic light
Rear wall/Side wall:
Center panel: titanium gold etched stainless steel mirror,
rear wall auxiliary panel: titanium gold hairline stainless steel
Side wall auxiliary panel/Front wall: titanium gold hairline stainless steel
Flooring: Standard PVC (optional marble)

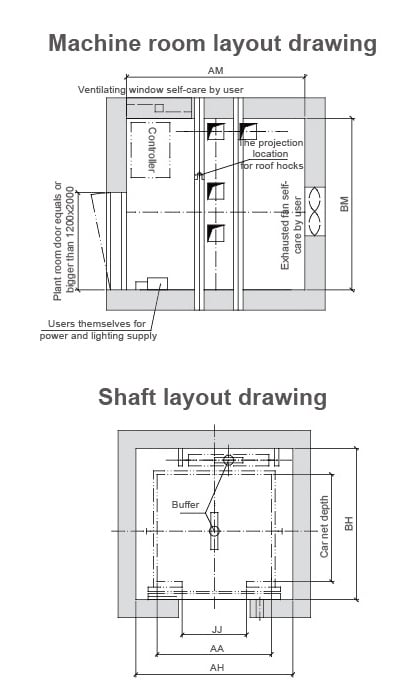

Request a QuoteDimensions
| Persons | Rated capacity (kg) | Rated speed (m/s) | Car size (mm) | Door size (mm) 2P Central opening | Shaft size (mm) | Machine room size(mm) | |||
| C.W×C.D×D.H | D.W×D.H | H.WxH.D | HR.H | Pit | MR.WxMR.D | MR.H | |||
| 6 | 450 | 1.0 | 1400x850x2300 | 800x2100 | 2000x1500 | 4000 | 1500 | 2000x1500 | 2500 |
| 1.5/1.75 | 4400 | ||||||||
| 8 | 630 | 1 | 1400x1100x2300 | 800x2100 | 2000x1720 | 4200 | 1500 | 2000x1720 | 2500 |
| 1.5/1.75 | 4400 | 1600 | |||||||
| 10 | 800 | 1 | 1400x1350x2300 | 800x2100 | 2000x1970 | 4200 | 1500 | 2000x1970 | 2500 |
| 1.5/1.75 | 4400 | 1600 | |||||||
| 2 | 4800 | 1800 | |||||||
| 2.5 | 2000 | ||||||||
| 13 | 1000 | 1 | 1600x1450x2300 1100x2100x2300 Stretcher elevator | 900x2100 | 2200x2120 2100x2500 Stretcher elevator | 4200 | 1500 | 2200x2120 2100x2500 Stretcher elevator | 2500 |
| 1.5/1.75 | 4400 | 1600 | |||||||
| 2 | 4800 | 1800 | |||||||
| 2.5 | 2000 | ||||||||
| 3 | 5200 | 2600 | |||||||
| 3.5 | 5500 | 3100 | |||||||
| 4 | 6000 | 3850 | |||||||
| 16 | 1250 | 1 | 1900x1450x2300 | 1100x2100 | 2500x2150 | 4200 | 1500 | 2500x2150 | 2500 |
| 1.5/1.75 | 4400 | 1600 | |||||||
| 2 | 4800 | 1800 | |||||||
| 2.5 | 2000 | ||||||||
| 3 | 5200 | 2600 | |||||||
| 3.5 | 5500 | 3100 | |||||||
| 4 | 6000 | 3850 | |||||||
| 18 | 1350 | 1 | 1900x1550x2300 | 1100x210 | 2500x2250 | 4200 | 1500 | 2500x2250 | 2500 |
| 1.5/1.75 | 4500 | 1600 | |||||||
| 2 | 4800 | 1800 | |||||||
| 2.5 | 2000 | ||||||||
| 3 | 5200 | 2600 | |||||||
| 3.5 | 5500 | 3100 | |||||||
| 4 | 6000 | 3850 | |||||||
| 21 | 1600 | 1 | 1900x1800x2300 | 1100x2100 | 2500x2500 | 4200 | 1500 | 2500x2500 | 2500 |
| 1.5/1.75 | 4500 | 1600 | |||||||
| 2 | 4800 | 1800 | |||||||
| 2.5 | 2000 | ||||||||
| 3 | 5200 | 2600 | |||||||
| 3.5 | 5500 | 3100 | |||||||
| 4 | 1900x1800x2800 | 6000 | 3850 | 3200 | |||||
| 6 | 1100x210 | 2700x2500 | 6350 | 4300 | 2700x2500 | ||||
| 10 | 1900x1800x2800 | 2700x2950 | 8800 | 7200 | 4200x2950 | 3800 | |||
| 26 | 2000 | 1 | 1900x2200x2300 | 1100x2100 | 2700x2700 | 4500 | 1500 | 2700x2700 | 2500 |
| 1.5/1.75 | 4700 | 1600 | |||||||
| 2 | 5000 | 1800 | |||||||
| 4 | 1900x2200x2800 | 2700x3350 | 6000 | 3850 | 4200x3350 | 3800 | |||
| 6 | 6400 | 4300 | |||||||
| 8 | 7500 | 4301 | |||||||
| 10 | 8800 | ||||||||
You can also match the Passenger elevator
interior to your liking
Signal system, Ceiling series, Landing door series, We have different styles for you to choose
-
Where can passenger elevators be installed?
-
FUJI can provide commercial building passenger elevator, industrial elevators & lifts,, public buildings passenger elevator, which can be installed in large retail stores, leisure centers, gyms, medical environments, shopping malls, and other locations.
-
-
How is the reliability of the elevator system ensured?
-
With over thirty years of experience in the elevator industry and being one of the first elevator manufacturers in China, FUJI utilizes intelligent control systems, digital frequency conversion technology, permanent magnet synchronous motor technology, high-precision positioning control systems, and other advanced technologies to ensure the safety of the elevator system.
-
Why Choose FUJI Elevator
We have a team of passionate engineers who will collaborate with each customer to find solutions, and build custom elevators, escalators or moving walks by continually pushing the boundaries of innovation. Their expertise and experience have been verified in numerous different projects during nearly 40 years of activity. This means we know the elevator industry and we currently cover a wide range of market sectors with our in-depth knowledge.
